Lianxin is a professional manufacturer of Chain Link Fence products, offering durable and versatile fencing solutions for a wide range of applications. Chain Link Fence, also known as diamond mesh or cyclone fence, is made from high-quality low carbon steel wire woven into a uniform diamond pattern. It is available in galvanized, PVC-coated, or vinyl-coated finishes, providing strong resistance to corrosion, weather, and wear. This fence type is widely used for securing sports fields, schools, highways, residential perimeters, construction zones, animal enclosures, and industrial properties. Its open mesh design ensures both visibility and airflow while maintaining strength and flexibility for effective boundary control.
Materials and Coatings
Chain Link Fence is manufactured using:
- Galvanized Steel Wire (electro or hot-dip)
- PVC-Coated Wire (green, black, red, blue)
- Vinyl-Coated Wire for additional color and protection
- Optional aluminum alloy or stainless steel wire for special applications
These coatings help prevent rust and extend the fence’s lifespan, making it suitable for both indoor and outdoor use, even in harsh environments.
Common Mesh Sizes
The diamond mesh size (opening) varies to suit different purposes:
- 25 mm (1″), 40 mm (1.5″), 50 mm (2″), 55 mm (2.25″), 60 mm (2.4″), 65 mm (2.5″), 76 mm (3″), 100 m (4″)
Mesh styles include knuckled or barbed edges for enhanced safety or higher security.
Wire Diameter Options
Wire thickness ranges from:
- 1.2 mm to 5.0 mm
- Standard gauges: 12.5 ga, 11.5 ga, 11 ga, 9 ga, 8 ga, 6 ga
Thicker wires are preferred for high-security or high-impact zones, such as airports or government facilities.
Standard Dimensions
- Height: 0.6 m (24″) to 3.66 m (144″)
- Roll Width: 0.5 m to 5.0 m
- Roll Length: 1.0 m to 50.0 m
Custom sizes are available to meet specific project requirements.
Features
- Strong diamond pattern construction
- Flexible, does not sag or roll
- Corrosion-resistant with long service life
- Easy installation and low maintenance
- Aesthetic appearance with multiple color options
- Available with straight, knuckled, or barbed edges
Application
- Property boundaries and residential fencing

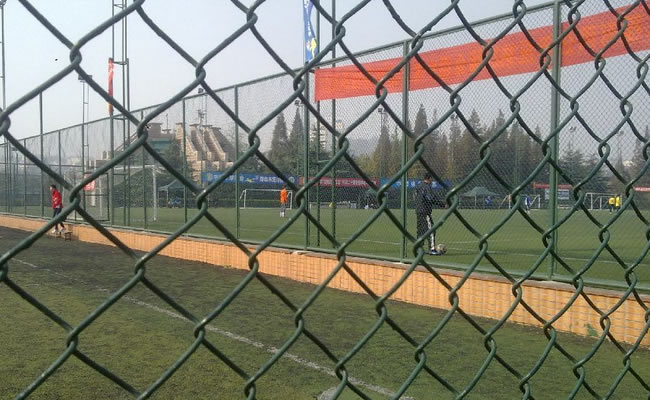

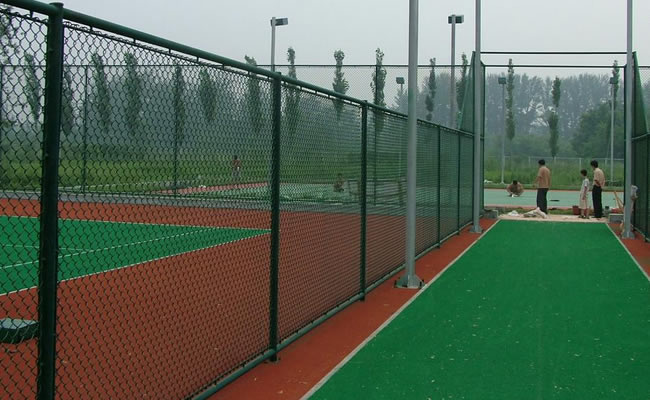

- Sports complexes and tennis courts
- Industrial parks and factory perimeters
- Highway and road safety barriers
- Schools, playgrounds, and parks
- Airports, seaports, and high-security sites
- Pet enclosures and agricultural use
