Lianxin is a professional manufacturer of Field Fence products designed for durable and cost-effective livestock enclosures. Also known as farm fence, cattle fence, or hinged joint fence, Field Fence is widely used to protect livestock such as cattle, sheep, goats, and horses, as well as to secure grasslands, forestry areas, and rural perimeters. Made from heavy galvanized steel wire, it features a flexible hinged joint structure that conforms to terrain changes and resists damage caused by livestock, impact, and weather.
Features of Field Fence:
- Constructed from high-tensile galvanized steel wire
- Corrosion- and weather-resistant surface with heavy zinc coating
- Hinged joint knots offer superior flexibility and pressure absorption
- Top and bottom wires reinforced with 2.5mm thickness for added strength
- Smooth surface, consistent mesh spacing, and rigid structure
- Easy transport, quick installation, and minimal maintenance

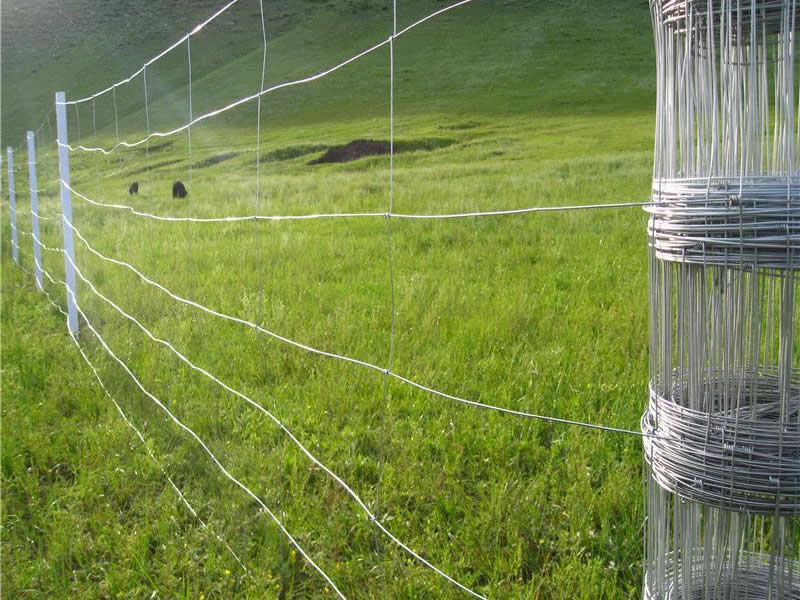

Applications of Field Fence:

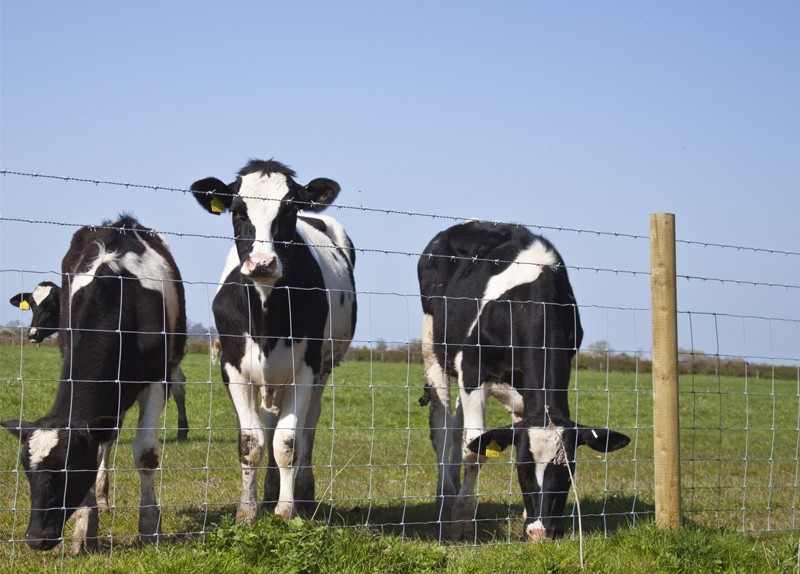

- Livestock fencing (cattle, sheep, goats, horses)
- Grassland and pasture protection
- Forest reserves and highway boundaries
- Farm perimeters and agricultural zones
- Construction site fencing and area isolation

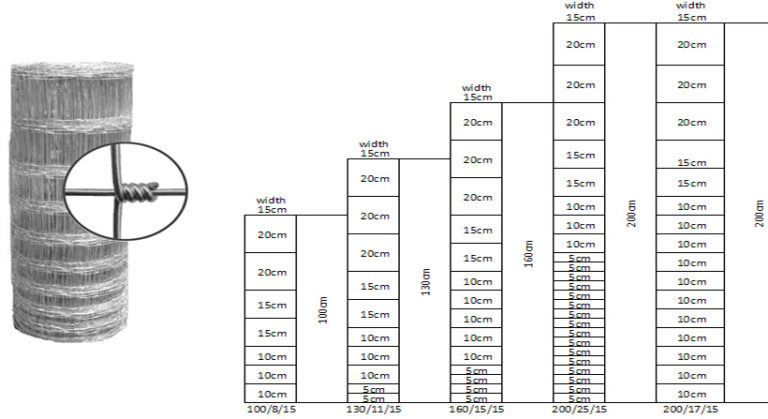

Specifications of Field Fence
Each style is defined by the number of horizontal lines, vertical spacing (usually 150mm), height, and roll length (commonly 50 meters).
| Sequence Number | Style | Specification | Total Weight(kg) | Edge Wire Diameter(mm) | Inner Wire Diameter(mm) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 |
| 7 | 10/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2.0 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 |
| 10 | 11/150/1442/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 |
