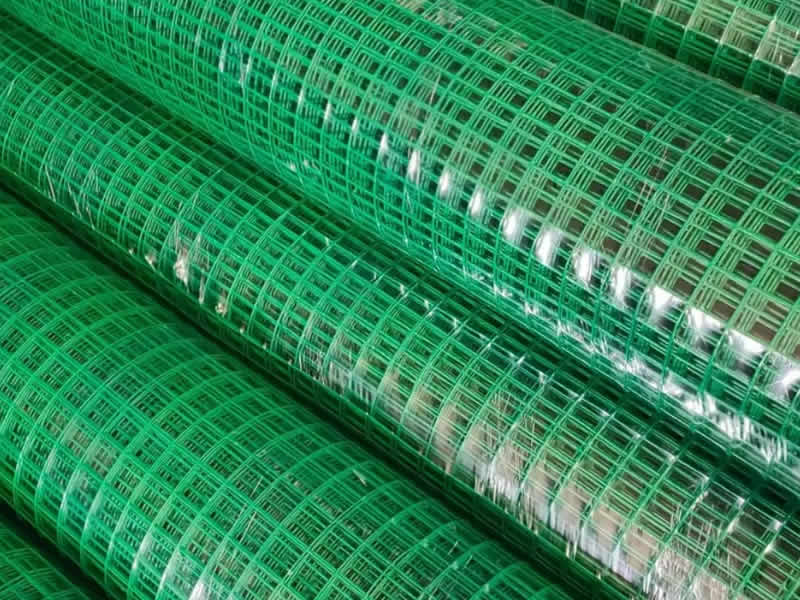

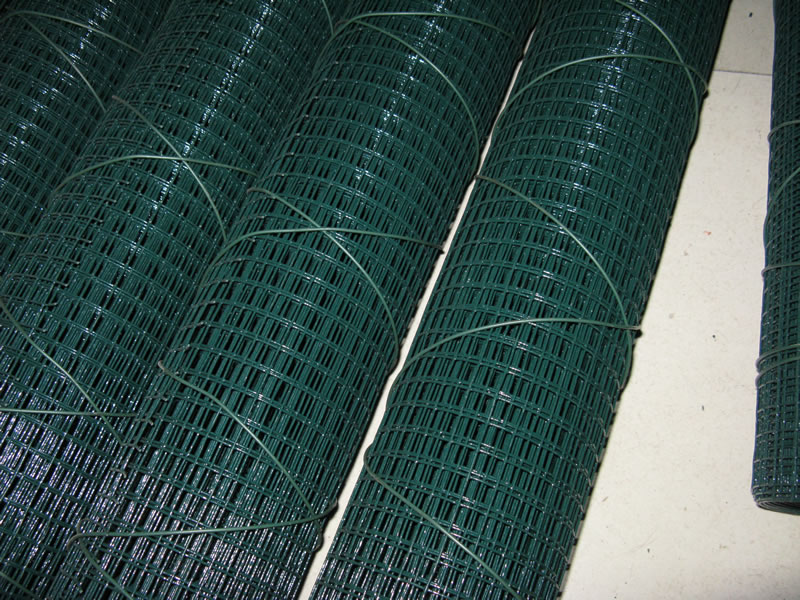

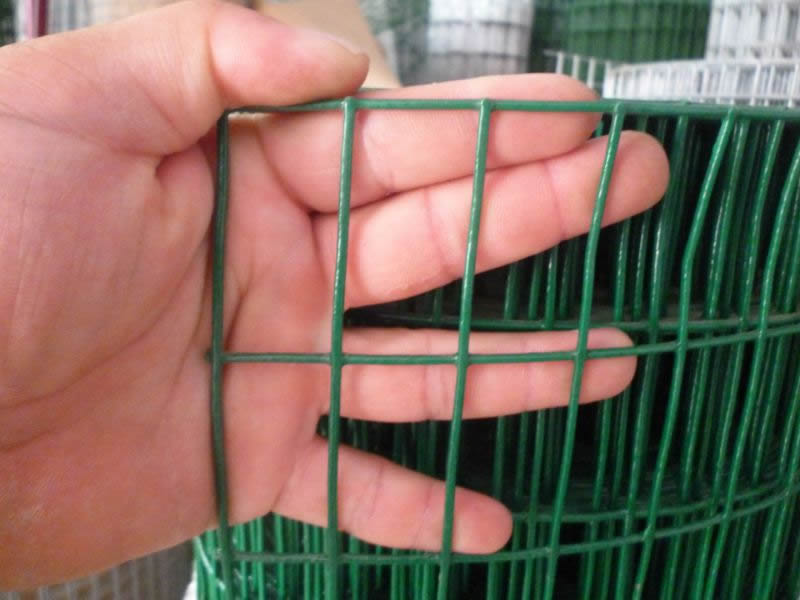

Lianxin is a professional manufacturer of PVC Coated Welded Wire Mesh products, offering high durability and corrosion resistance for diverse fencing and screening applications. Also known as vinyl-coated welded wire mesh, this product is manufactured by welding high-quality galvanized steel wire and then applying a thick layer of polyvinyl chloride (PVC) through an advanced heat bonding process. The double protection of zinc and plastic coating ensures long service life even in harsh environments. Common applications include garden fencing, security barriers, animal cages, plant supports, machine guards, and decorative panels.

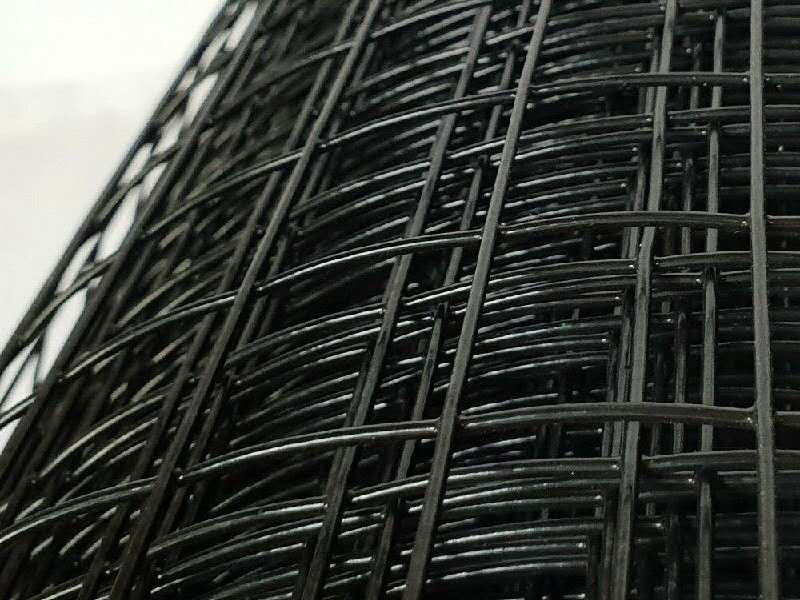

Wire Material and Surface Treatment PVC Coated Welded Wire Mesh is made from low carbon steel wire, hot-dipped galvanized wire, or electro-galvanized wire. The wire mesh undergoes either galvanizing before welding (GBW) or galvanizing after welding (GAW), followed by PVC coating. Available in colors such as green (RAL6005), black (RAL9005), white (RAL9010), grey (RAL7030), and yellow, the mesh is suitable for blending into residential, industrial, or landscape settings.
Common Colors
- Green (RAL6005)
- Black (RAL9005)
- White (RAL9010)
- Stone Grey (RAL7030)
- Yellow, Blue, and Custom RAL Colors
Specifications – Mesh Sizes and Wire Diameters
1/4 inch Mesh (6.4 mm)
- Wire Before Coating: 0.56 – 0.71 mm
- Wire After Coating: 0.90 – 1.05 mm
3/8 inch Mesh (9.5 mm)
- Wire Before Coating: 0.64 – 1.07 mm
- Wire After Coating: 1.00 – 1.52 mm
1/2 inch Mesh (12.7 mm)
- Wire Before Coating: 0.71 – 1.65 mm
- Wire After Coating: 1.10 – 2.20 mm
5/8 inch Mesh (15.9 mm)
- Wire Before Coating: 0.81 – 1.65 mm
- Wire After Coating: 1.22 – 2.30 mm
3/4 inch Mesh (19.1 mm)
- Wire Before Coating: 0.81 – 1.65 mm
- Wire After Coating: 1.24 – 2.40 mm
1 x 1/2 inch Mesh (25.4 × 12.7 mm)
- Wire Before Coating: 0.81 – 1.65 mm
- Wire After Coating: 1.24 – 2.42 mm
1 inch Mesh (25.4 mm)
- Wire Before Coating: 0.81 – 2.11 mm
- Wire After Coating: 1.28 – 2.90 mm
1 1/2 inch Mesh (38.1 mm)
- Wire Before Coating: 1.07 – 2.11 mm
- Wire After Coating: 1.57 – 2.92 mm
1 x 2 inch Mesh (25.4 × 50.8 mm)
- Wire Before Coating: 1.47 – 2.11 mm
- Wire After Coating: 2.00 – 2.95 mm
2 inch Mesh (50.8 mm)
- Wire Before Coating: 1.65 – 2.77 mm
- Wire After Coating: 2.20 – 3.61 mm
3 inch Mesh (76.2 mm)
- Wire Before Coating: 1.90 – 3.50 mm
- Wire After Coating: 2.50 – 4.36 mm
4 inch Mesh (101.6 mm)
- Wire Before Coating: 2.20 – 4.00 mm
- Wire After Coating: 2.85 – 4.88 mm
Applications
- Residential Fencing: Common sizes include 1/2 inch to 1 inch mesh for security and aesthetics.
- Agricultural Uses: Meshes like 3/4 inch and 1 inch are widely used for animal enclosures and plant supports.
- Industrial Safety: Used in machine guards and protective barriers with mesh sizes from 1/2 inch to 3/4 inch.
- Gabions and Retaining Walls: Large mesh sizes (3″ or 4″) with thick wire for erosion control.
- Garden Protection: Smaller mesh sizes (1/4″ to 1/2″) effectively keep pests out.
Packaging Options Available in rolls or panels, wrapped in plastic film, tied with galvanized wire, or packed in wooden boxes or pallets. Custom packaging available upon request.
| Mesh size | Wire Dia before & after PVC coat | ||
|---|---|---|---|
| mm | inch | Before coat | After coat |
| 6.4 | 1/4 inch | 0.56 – 0.71 | 0.90 – 1.05 |
| 9.5 | 3/8 inch | 0.64 – 1.07 | 1.00 – 1.52 |
| 12.7 | 1/2 inch | 0.71 – 1.65 | 1.10 – 2.20 |
| 15.9 | 5/8 inch | 0.81 – 1.65 | 1.22 – 2.30 |
| 19.1 | 3/4 inch | 0.81 – 1.65 | 1.24 – 2.40 |
| 25.4 × 12.7 | 1 × 1/2 inch | 0.81 – 1.65 | 1.24 – 2.42 |
| 25.4 | 1 inch | 0.81 – 2.11 | 1.28 – 2.90 |
| 38.1 | 1 1/2 inch | 1.07 – 2.11 | 1.57 – 2.92 |
| 25.4 × 50.8 | 1 × 2 inch | 1.47 – 2.11 | 2.00 – 2.95 |
| 50.8 | 2 inch | 1.65 – 2.77 | 2.20 – 3.61 |
| 76.2 | 3 inch | 1.90 – 3.50 | 2.50 – 4.36 |
| 101.6 | 4 inch | 2.20 – 4.00 | 2.85 – 4.88 |
