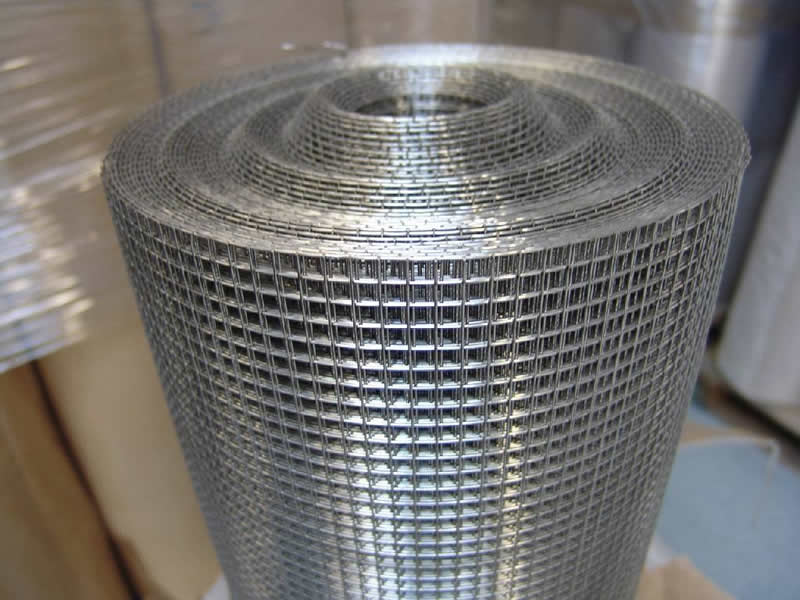

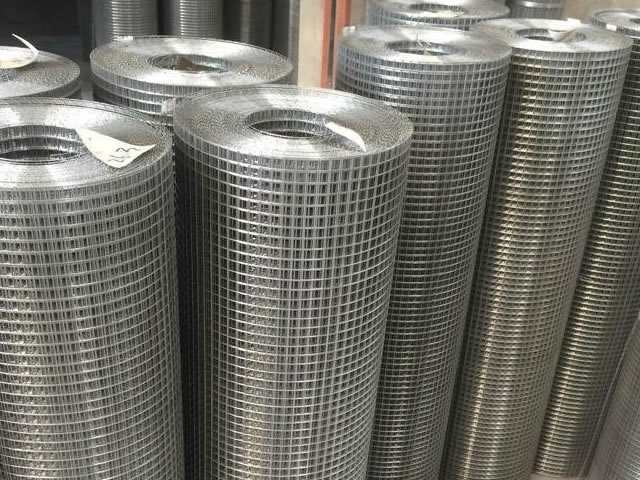

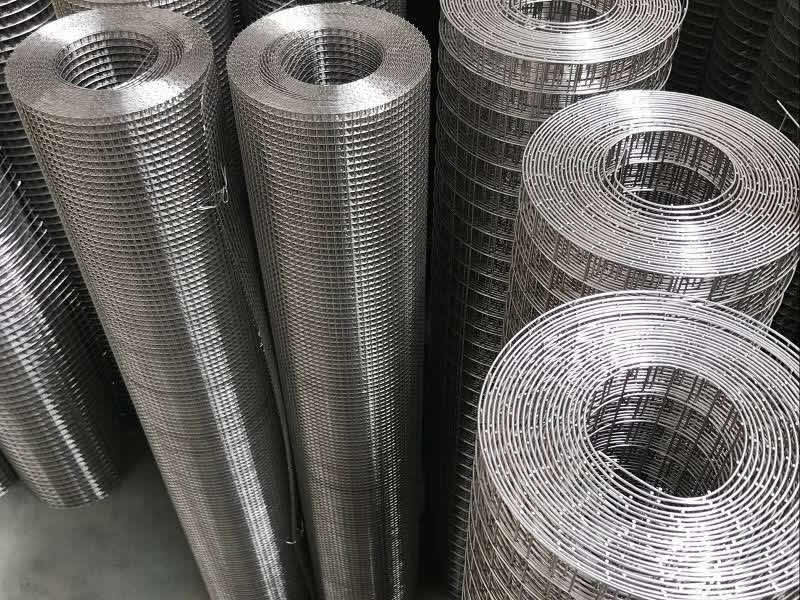

Stainless Steel Welded Wire Mesh

Lianxin is a trusted manufacturer of Stainless Steel Welded Wire Mesh, offering precision-welded mesh in both rolls and panels for structural durability, corrosion resistance, and long service life. Made from premium stainless steel grades such as 304, 304L, 316, and 316L, this mesh is constructed by welding intersecting wires into rigid grid formats with square or rectangular openings. Ideal for industrial, architectural, agricultural, and marine environments, Stainless Steel Welded Wire Mesh performs exceptionally well without the need for coatings or further surface treatment. Its strong weld points, consistent aperture size, and excellent resistance to rust and chemical attack make it suitable for fencing, machinery guards, food processing, enclosures, and filtration systems.

Mesh Opening Sizes

Stainless Steel Welded Wire Mesh is available in a wide range of aperture configurations to suit various applications:

• 1/4″ × 1/4″ (6.4 mm × 6.4 mm) – BWG 22–24; ideal for fine filtering and small enclosures
• 1/2″ × 1/2″ (12.7 mm × 12.7 mm) – BWG 16–23; commonly used for partitions and safety covers
• 1″ × 1″ (25.4 mm × 25.4 mm) – BWG 11–20; suitable for fencing and architectural panels
• 1″ × 2″ (25.4 mm × 50.8 mm) – BWG 14–16; used for racks, shelving, and cages
• 2″ × 2″ (50.8 mm × 50.8 mm) – BWG 12–16; ideal for larger animal pens and security barriers

Custom mesh openings are available on request for specialized industrial or construction needs.

Wire Diameter Range

Wire thickness varies by application:

• Light-duty: 0.5–1.2 mm for fine screening and decorative use
• Medium-duty: 1.5–2.5 mm for safety covers and cages
• Heavy-duty: 3.0–4.0 mm for structural reinforcement and fencing

Uniform wire diameter across both warp and weft ensures a flat, strong structure with no deformation.

Roll Widths and Panel Dimensions

Stainless Steel Welded Wire Mesh is available in both rolls and panels:

• Roll Widths: 24″, 36″, 48″, 60″, and 72″ (609.6 mm to 1828.8 mm)
• Roll Lengths: 50 ft, 100 ft, and 150 ft (15.24 m to 45.72 m)
• Panel Sizes: Standard panels include 2.0 m × 3.0 m, with custom sizes manufactured upon request

All products are securely packaged in moisture-resistant materials to ensure clean and damage-free delivery.

Material Grades

Stainless Steel Welded Wire Mesh is produced using the following grades:

• 304 / 304L: Excellent corrosion resistance and weldability
• 316 / 316L: Enhanced performance in saltwater, marine, or chemically aggressive environments
• Other grades such as 302 stainless steel are also available depending on project requirements

Surface Finishes

Although stainless steel does not require extra protection, multiple finish options are offered to match your usage:

• Bright annealed – for clean appearance and smooth finish
• Mill finish – for general industrial applications
• PVC coated – black, green, or custom RAL colors for aesthetic or insulation purposes
• Galvanized before or after weld – offered for mild steel mesh alternatives

Applications

Stainless Steel Welded Wire Mesh is widely used in the following areas:

• Security fencing and barriers
• Food processing trays and drying racks
• Reinforcement in concrete slabs and walls
• Animal cages and poultry enclosures
• Safety guards and machinery screens
• Architectural panels and garden partitions
• Greenhouse frames and plant supports

Its adaptability, hygiene standards, and resilience to harsh elements make it suitable for indoor, outdoor, and sanitary environments.

Customization Options

Lianxin provides full customization for Stainless Steel Welded Wire Mesh:

• Custom roll widths, lengths, mesh apertures, and wire gauges
• OEM service with private label packaging
• Cut-to-size panels based on construction or fencing drawings
• Fast production lead time for both bulk and small quantity orders
