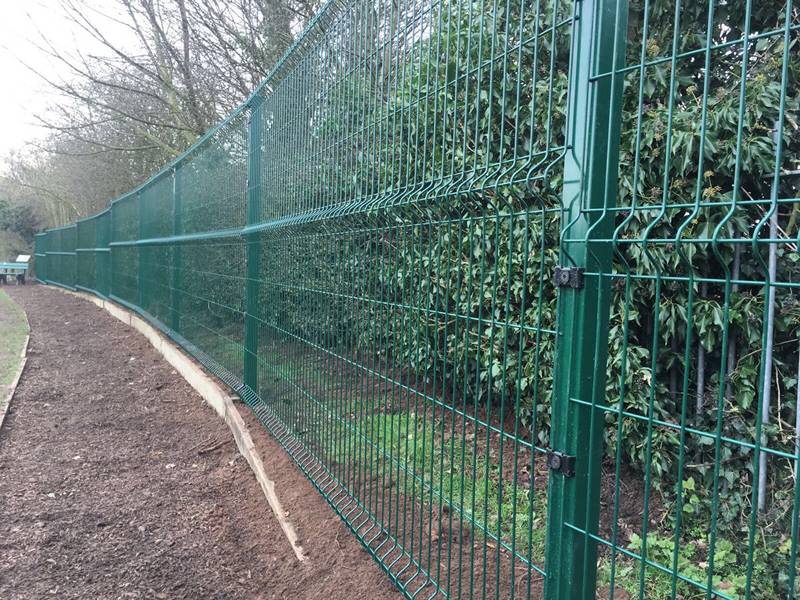

Lianxin’s Welded Mesh Fence is a high-performance perimeter protection solution widely used for residential, commercial, and industrial fencing. Manufactured using low carbon steel wire, the panels are welded at each junction for superior strength and rigidity. Each component—panels, posts, brackets, and gates—is galvanized and powder-coated for excellent corrosion resistance, making the system long-lasting and ideal for outdoor environments. The fence is easy to install, structurally reliable, and compatible with various site requirements. Welded mesh fence is commonly applied to schools, parks, airports, factories, and housing developments.
Fence Panel Specifications:

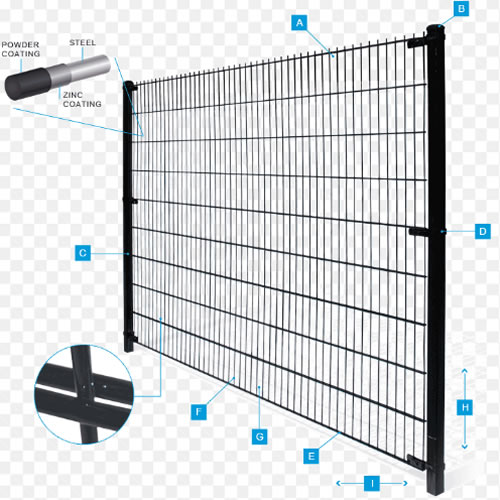

Welded mesh fence panels are treated with zinc and polyester coatings to enhance weather resistance and surface durability.
- Panel Heights: 2 ft, 4 ft, 5 ft, 6 ft, 8 ft
- Panel Length: 8 ft
- Mesh Opening Size: 50×150 mm (2″×6″)
- Wire Diameter: 3.0 mm – 7.0 mm
- Gauge: 6
- Braces per Height: 2 (2’–4′), 3 (5′), 4 (6′), 5 (8′)
- Wire Breaking Load: 80,000–100,000 PSI
- Weld Shear Strength: 1,051 lbs
- Galvanized Coating: 0.50 oz/ft²
- Polyester Coating Thickness: 100 microns (approx. 4 mils)

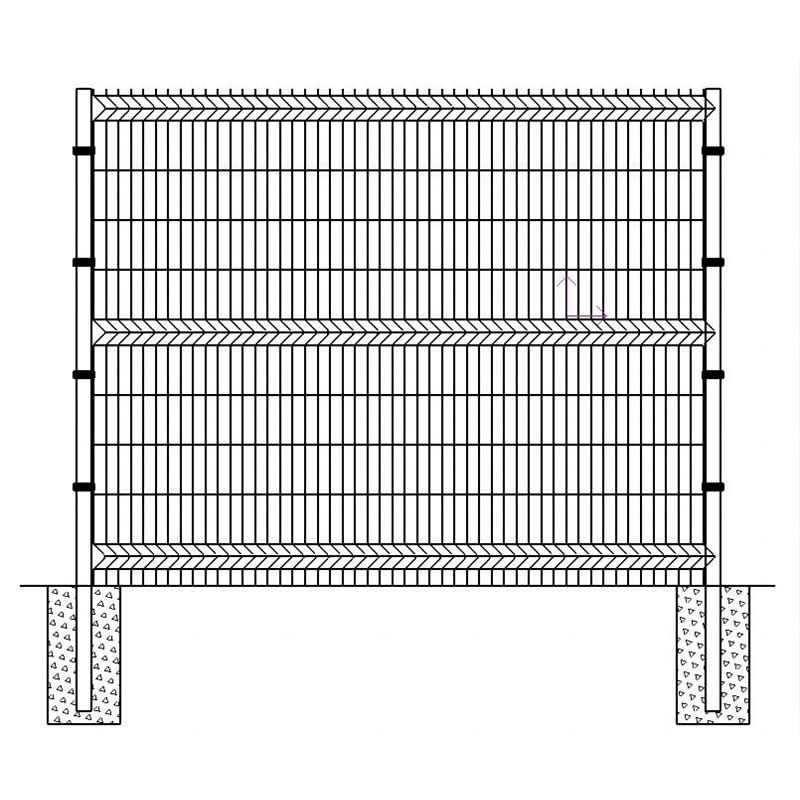

Fence Post Specifications:
Posts are galvanized inside and out, phosphate-treated, and powder-coated for superior corrosion protection.
- Post Heights:
- 3′ (for 2′ panel)
- 6′ (for 4′ panel)
- 7′ (for 5′ panel)
- 8′ (for 6′ panel)
- 11′ (for 8′ panel)
- Post Dimensions: 2¼” × 2¼”
- Post Gauge: 16
- Weld Shear Strength: 1,051 lbs
- Coating: Same as panels (0.50 oz/ft² zinc + 100 µm polyester)
Gate Options:
Welded mesh fence gates are available in swing or sliding designs, with single or double leaf options.
- Uniform welded frames
- Pre-galvanized and powder-coated after welding
- Multiple lock and handle options
- Fully integrated to match fence systems
- Available with base plates or embedded posts
Brackets & Accessories:
- Steel brackets: galvanized and powder-coated
- Bracket per Post: 2 (2’/4′), 3 (5′), 4 (6′), 5 (8′)
- Screws/Bolts: 1¼” galvanized, fastened with standard 7/16″ wrench
- Optional: 45° top arms for barbed wire, extra panels, or razor wire

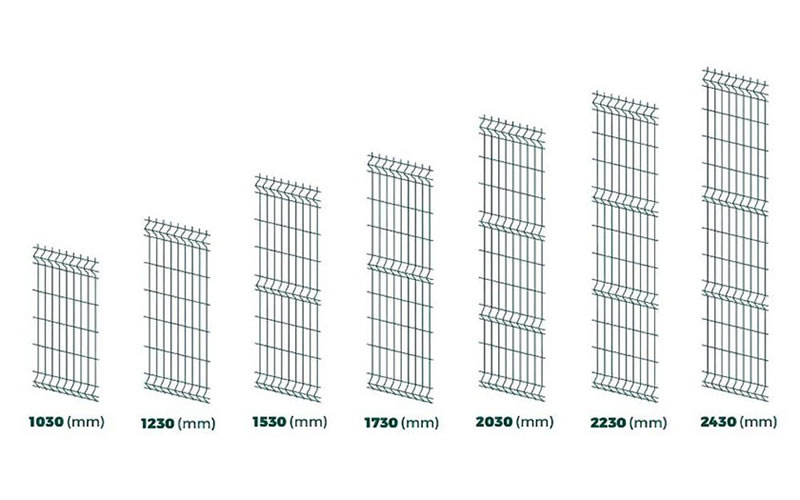

Common Panel Sizes:
| Panel Size (L×H, mm) | Pole Height (mm) | Ribs |
|---|---|---|
| 2405×1270 | 1500 | 2 |
| 2405×1570 | 1850 | 2 |
| 2405×1720 | 2130 | 2 |
| 2405×2000 | 2450 | 3 |
Application :
- Public Security: Roads, highways, railways, and airports

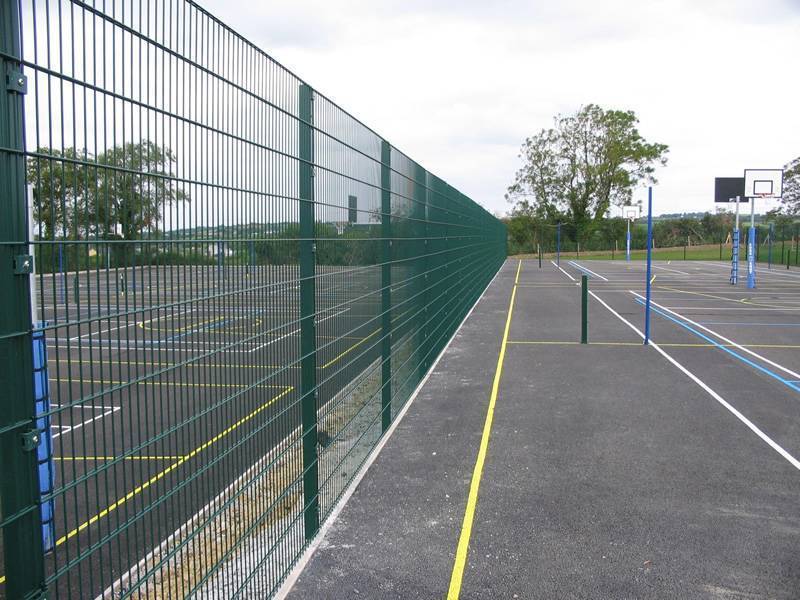

- Residential Zones: Parks, gardens, villas, schools, and sports grounds
- Industrial Use: Factories, warehouses, farms, and power stations
- Custom Projects: Customized for isolation and protection of specific zones
Features & Benefits:
- Welded mesh panels with “V” bends for added rigidity
- Excellent corrosion resistance (HDG or PVC-coated)
- Anti-rust and weather-resistant properties
- Easy installation and low maintenance
- Custom colors available (green, black, white, etc.)
- Compatible with LEED certification criteria due to green product materials
